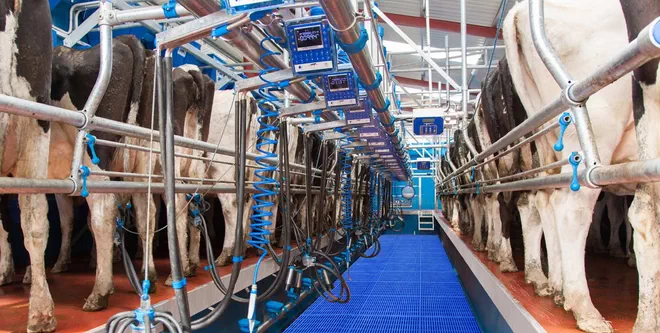

“Swing Over” Milking Parlor
The Swing Over milking parlor is a more economical version of the "Parallel" milking parlor. Unlike the "Parallel" where each milking station is equipped with its own milking machine, in the "Swing Over," the machine is moved alternately from one side of the milking pit to the other. This significantly reduces costs and operating expenses with almost no difference in performance. The "Swing Over" also allows installation in narrow spaces with a width of 6.4 meters or more, making it an optimal choice for renovating facilities instead of using larger milking equipment like the "Herringbone."
The "Swing Over" milking parlor 2x16 can milk up to 140 cows per hour. It can be used with both fast (stall lifting) and sequential exit.
Key Features
Increased Dairy Farm Profitability
Our milking parlors are designed for optimal performance, leading to efficient resource management and increased profitability for your dairy business.
1-Minute Faster Milking per Cow
Reducing milking time reduces stress for animals and enhances their comfort, positively impacting their overall health and productivity.
Increased Productivity with Reduced Labor
Utilizing Dairymaster's innovative solutions allows for higher productivity despite reduced efforts.
5% Increase in Milk Yield on Average
Advanced Dairymaster technologies maximize milk output from each cow, elevating overall production levels.
Udder Health Assurance
Our milking system promotes normal blood circulation in the udder, minimizing the risk of diseases and ensuring long-term herd health.
Wide Range of Options
We offer various models of milking parlors, technological options, and automation levels to meet your specific needs and conditions.
Main Components of the "Swing Over" Milking Parlor
Automatic Cow Identification System
This system significantly increases the productivity and efficiency of the milking process, simplifying herd management and health control.
Milk Manager Software
Milk Manager provides extensive capabilities for analyzing milk yield data, animal health, and farm management, enhancing overall productivity.

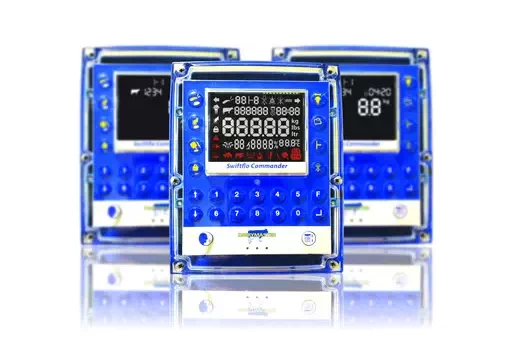

Milking Point Control Panel
The panel facilitates monitoring and control of the milking process, providing milking parlor operators convenient access to key performance indicators.
Milking Machine
Milking machines ensure high efficiency and milk quality, contributing to increased milk yield and cow well-being.
The Automatic Cow Identification System reads information from an electronic ear tag when a cow enters the milking parlor. Each cow has a tag attached to its ear, and when the cow passes through the identification antenna located at the entrance of the milking parlor or through a sorting gate (if available), it sends a signal to a reader device. This reader device then sends a message to a computer, which accurately identifies the cow.

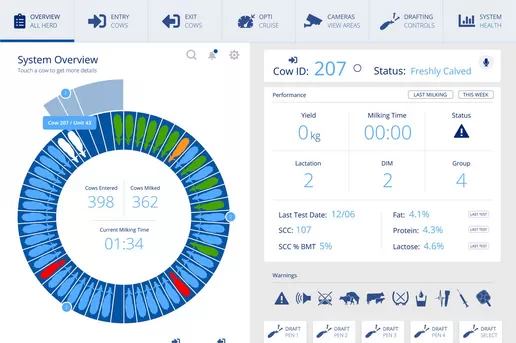

The "Milk Manager" software provides easy access to comprehensive information about milk yield, milking time, veterinary data, cow sorting, and live weight. It controls and manages all the automatic systems in the parlor, improving overall performance. All data is presented in clear tables and graphs, and livestock managers can add the results of productivity monitoring to the program. Throughout the milking process, the control program monitors and tracks the condition of each cow. The program can fully control and automate the cow separation processes. Animals are sorted using robotic selection gates, and the sorting schedule can be customized according to user requirements, such as continuous stream separation or temporary separation of certain cows in a specific direction. The cow activity detection system, designed to detect heat in cows, also interacts with the program. When a cow is identified as being in heat, the selection gates can automatically sort such a cow during a user-defined milking session.
The Milking Point Control Panel displays several important indicators, including milk yield, milking time, somatic cell count in each cow's milk, and more. With a single touch, you can control animal feeding at each milking point, receive notifications about cows in heat, and manage the operation of sorting gates, separating animals for inspection or insemination. Additionally, the Swiftflo Commander display informs about freshly calved cows in the milking parlor, initiating milking into the milk line.

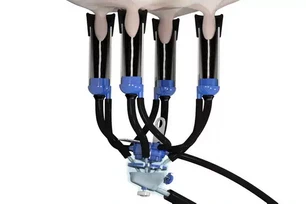

The Milking Machine has the capability of visually monitoring the milk flow through a transparent collector cover. According to research conducted considering the entire lactation period of cows, the Dairymaster milking machine allows for 5% more milk yield compared to other tested milking machines. The advantages of the milking machine are attributed to its components, including a specially designed collector, stainless steel teat cups, and super-elastic conical teat rubber. The teat rubber stands out for its exceptional performance and has the lowest slip rate among existing brands of teat rubber. The special conical shape and elasticity of the teat rubber, made from a special material, provide a milking mode in which the teat cup does not creep onto the base of the teat during milking, and the teat canal is not compressed. The milking machine maintains a stable vacuum during the milking phase (42-44 kPa in the teat chamber) and reduces it during the rest phase (down to 18-20 kPa depending on the milk flow). This contributes to faster milking and improved udder condition.
Innovative Receiving Bowls
Dairymaster receiving bowls are designed to improve the efficiency of the milking process, ensuring hygienic milk collection and ease of equipment cleaning.
Automatic Removal of Milking Machines
Dairymaster's system for automatic removal of milking machines reduces labor and enhances milking accuracy, ensuring gentle detachment of equipment after completion.
Milk Meter with Weighing System
ICAR-certified Dairymaster milk meters provide precise milk yield measurement, crucial for managing farm productivity and milk quality.

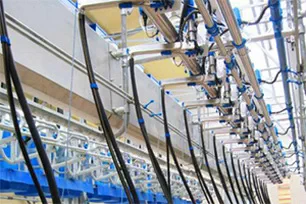

Milk and Vacuum Lines, Wash Systems
Dairymaster's stainless steel components ensure durability and reliability of milk and vacuum lines and wash systems, contributing to maintaining a high level of hygiene on the dairy farm.

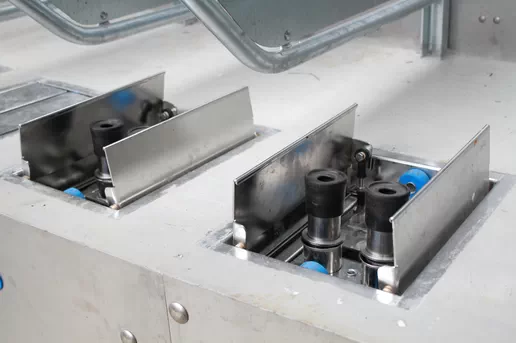

Receiving bowls provide the optimal positioning of milking machines during cleaning. The system is neatly concealed beneath the cow's location. Receiving bowls have a hygienic design, allowing for the inside and outside cleaning of teat rubber. Self-closing lids prevent dirt from entering during milking.

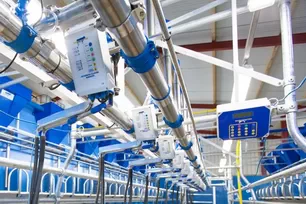

Automatic milking machine removal system accurately and sequentially tracks milk flow during milking. After milking is completed, vacuum supply ceases, and the milking machine is automatically detached from the cow's udder. The lifting cylinder is made of stainless steel, ensuring maximum strength and reliability. The automatic milking machine removal system can be easily configured using a milk meter or computer and includes a milk meter restart feature, allowing the meter to retain cow yield data in case the milking machine is accidentally detached or removed. The automatic milking machine removal system can monitor milk flow in two milk lines (main and divert) and allows for separation with a single button press.

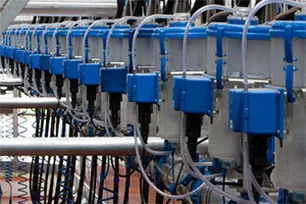

Milk meters are certified by the International Committee for Animal Recording (ICAR) and the Dairy Herd Improvement Association (DHIA). The milk meter registers incoming milk based on weight (measuring weight, not volume or flow), making it the most accurate measurement system. The milk meter includes a milk sampling feature, fully integrated into the milk meter. The cleaning of milk meters is also optimized. Initiating cleaning on one of the milk meters activates cleaning for all milk meters.
Milk and vacuum lines, wash systems are made from stainless steel, providing strength and a long service life. Our milk lines' dimensions comply with the latest international standards. The use of stainless steel ensures easy cleaning and sanitation.
Milk Receivers
Dairymaster milk receivers ensure reliable milk collection and are equipped with side transparent windows for monitoring the milk inflow process.
Reactive Cleaning
Dairymaster's effective reactive cleaning system ensures thorough cleaning of milking equipment, guaranteeing high hygiene and product safety.

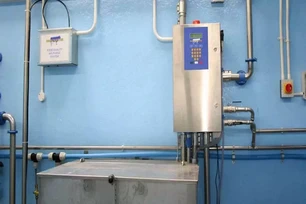

Automated Washing System
Dairymaster's automated washing system streamlines the cleaning processes of milking parlors, ensuring high efficiency and time savings for farm workers.
Centrifugal Milk Pumps
Dairymaster centrifugal milk pumps are known for their high performance and gentle handling of milk, ensuring quality milk transport without damaging its structure.

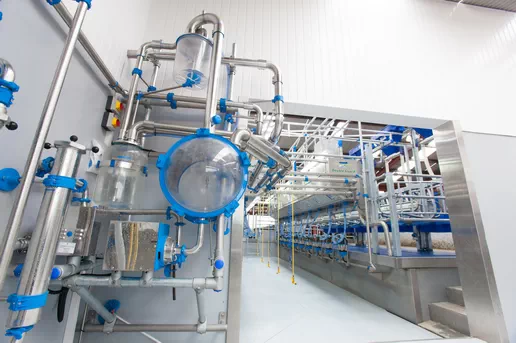

Milk Receivers are made of stainless steel with side dome-shaped transparent windows made of food-grade plastic for visualizing milk inflow into the milk receiver. Milk receivers can come in different sizes depending on the milking parlor.

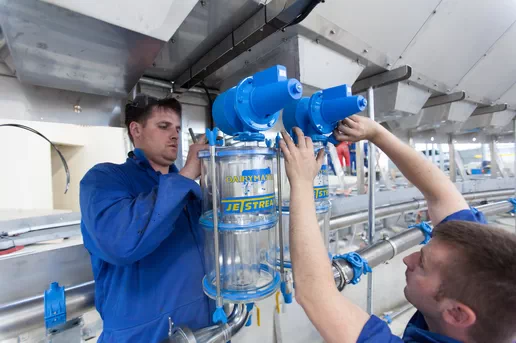

Reactive Cleaning System - an effective system for cleaning milking equipment of any type and size. The system is controlled by the washing machine and is equipped with a tank with an air injector. The system draws water into the tank and then pushes it into the milk line at a speed of 12-14 m/s. Turbulent flow of water is created in the milk line, allowing efficient cleaning of the milk line and milk receiver while minimizing the consumption of cleaning solution.
Automated Washing System ensures high-quality cleaning of the milking parlor on a regular basis. The automated washing system is fully integrated and controls the entire milking parlor washing cycle. It communicates with milking parlor equipment, including milk meters and automatic milking machine removal systems, to provide the best washing sequence. The automated washing system allows you to select different washing cycles with a single button press. The sequence of washing cycles is fully programmable and can be easily customized to user requirements. Preliminary rinsing before milking can be programmed for automatic start. A safety valve prevents the system from starting the washing process if the milking parlor is incorrectly connected to the washing system, preventing accidental entry of cleaning solution into the milk cooler tank. The presence of a built-in warning indicator allows timely notification of the user about incorrect system operation, such as low detergent levels, and more. The system is equipped with a rechargeable battery to save settings in case of sudden power loss.
Centrifugal Milk Pumps are manufactured using the latest technologies, materials, and developments. The milk pump is equipped with a multi-blade impeller, providing several advantages, including highly efficient and gentle pumping at various speeds, thanks to the unique blade design.
Milk Filtration System
The use of disposable filters ensures high milk purity, maintaining its quality and safety for consumption.

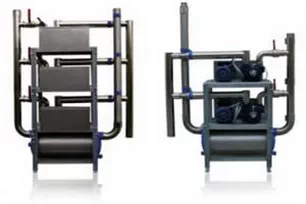

Vacuum System
Rotary vane vacuum pumps ensure stable and reliable operation of milking equipment, increasing its productivity.
Pulsation System
Dairymaster's pulsation system ensures maximum milking efficiency, thanks to its reliability and stability of operation.
Milk Sampling
Milk sampling is done automatically and does not interfere with the milking process, allowing farm operators to focus on other tasks.
Milk Filtration System is made of stainless steel based on a sturdy frame. Disposable filters are installed to ensure optimal milk filtration. For larger setups, multiple filters can be used, and the system can be configured to allow filter changes during milking. The filter prevents foreign materials from entering the plate cooler and then into the milk tank, improving the efficiency of both the cooler and the milk tank.
Vacuum System uses rotary vane vacuum pumps, which are the most reliable in the market. The vacuum pumps are manufactured using the latest engineering technology, ensuring their maximum performance. When used with a frequency control system, vacuum pumps provide high efficiency and help significantly reduce energy consumption (by 50-80%). They feature a stainless steel belt guard. A safety float is included in the sanitary jar, ensuring automatic shutdown of the vacuum system in case of milk overflow in the milk receiver.
Pulsation System used in our milking equipment is recognized as a leader in terms of reliability, stable operation, and ease of maintenance. The pulsation rate and ratio are easily adjustable. Dairymaster uses a simultaneous milking system (4x0) - all 4 teats are milked simultaneously. In this case, it is possible to adjust the vacuum level to mimic calf suckling, resulting in: - Full teat canal opening, allowing for milking one minute faster than any other milking equipment. - Reduced risk of hyperkeratosis (thickening and roughening of the teat), improving udder health. - Animals enjoy the milking process, leading to increased oxytocin release, which can boost yields by 5% due to deeper milking. In paired milking (2x2), a constant high vacuum level is required, or else the milking machine falls off. The Dairymaster milking machine does not fall off or suck in air.
Milk Sampling and Collection are done in a safe, easily accessible, and clean location. The employee collecting samples does not interfere with the operator's work, as the milk sampling process occurs independently of the milking process. Milk sampling is inconspicuous to cows, eliminating the stress factor of unfamiliar people.
Recommended options for the Swingover Milking Parlor

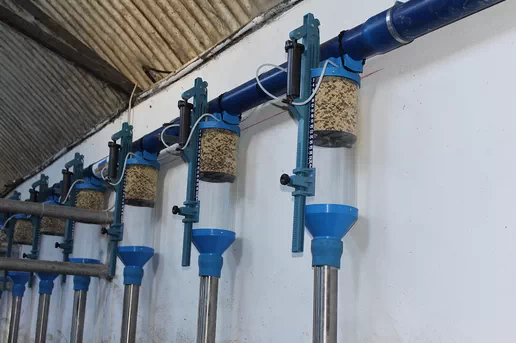

Automatic Addressable Feeding System
Allows for an additional 8% milk yield and saves 1 kg of feed per animal per day, eliminating the need for an expensive automatic feeder.
Milk Diversion Line
Allows for sorting milk by grades during milking, enabling the sale of milk at different prices for different grades. It also eliminates the need to invest in a separate milking and cooling facility for sorting cows.
Disinfection of Milking Machines after Each Cow
Automatically rinses each milking machine with a disinfectant solution after milking each cow, preventing cross-contamination between animals in the milking parlor. Reducing somatic cell counts improves milk quality and herd health.
Selection Block
Directions for individual cows can be set in two, three, or more directions. Directions for individual cows can be set from the milking pit, using the milk meter panel, or automatically based on pre-entered herd management information. An additional function of such a system is automatic weighing.
The Automatic Addressable Feeding System (a system for stimulating cow productivity and milking completeness in the milking parlor) allows for an additional 8% milk yield and saves 1 kg of feed per animal per day, eliminating the need for an expensive automatic feeder in the pre-milking area and avoiding frequent sorting of animals by productive-physiological groups. In carousel-type milking parlors, up to four different types of feed can be dispensed, depending on the physiological stage of the animal.

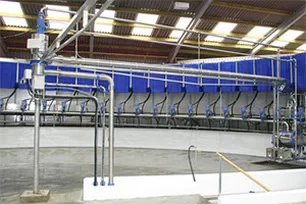

The Milk Diversion Line (automatic milk sorting system) allows for sorting milk by grades during milking, enabling the sale of milk at different prices for different grades. It also eliminates the need to invest in a separate milking and cooling facility for sorting cows. A secondary milk line (which can separate milk into three grades simultaneously) can also be used in carousel-type milking parlors to separate milk with, for example, increased protein or fat content.

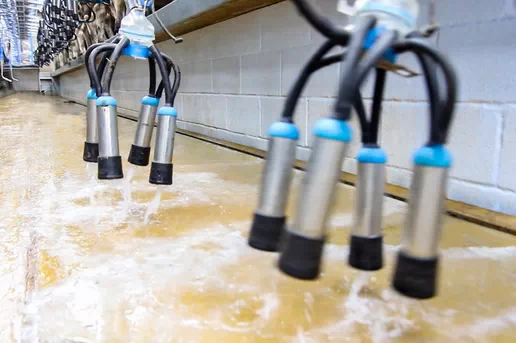

The Milking Machine Disinfection System automatically rinses each milking machine with a disinfectant solution after milking each cow, preventing cross-contamination between animals in the milking parlor. Reducing somatic cell counts improves milk quality and herd health.
The Selection Block can divide cows into two, three, or more directions. Directions for individual cows can be set from the milking pit using the milk meter panel or automatically based on pre-entered herd management information. An additional function of this system is automatic weighing.
Milk Pipeline Purging System
Uses air to ensure complete transfer of milk remaining in the milk pipeline to the milk cooling tank after milking.

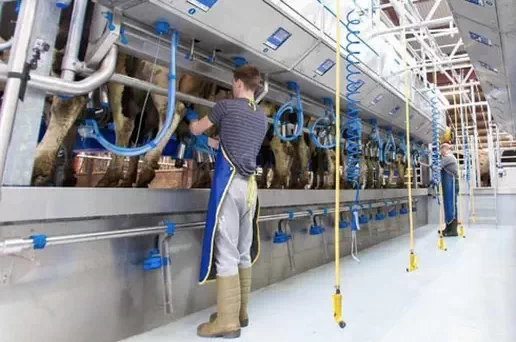

Milking Machine Auto-Start
Activates the milk meter and automatic teat cup removal system when the milking machine is lifted, eliminating the need for manual button presses by the operator.
Plate Milk Precooler
Stainless steel plate milk precoolers allow for milk cooling in the flow, even before it enters the milk cooling tank, down to 4 degrees Celsius.
Voice Messaging System
The system is especially convenient for shift work in the milking parlor, allowing for the exchange of important information through voice messages.
Milk Pipeline Purging System uses food-grade purified air to ensure the complete transfer of milk remaining in the milk pipeline to the milk cooling tank after milking. The milk pipeline can hold up to 20-25 liters of milk, depending on the distance between the milk receiver and the tank.
Milking Machine Auto-Start automatically activates the milk meter and the automatic teat cup removal system when the milking machine is lifted, thus relieving the operator from the need to press any buttons to start milking. This function saves the operator's time and aligns with our goal of making the milking process easier and faster.

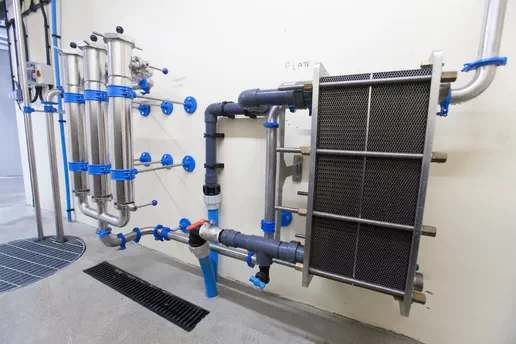

Plate Milk Precooler made of stainless steel allows for cooling milk in the flow even before it enters the milk cooling tank, down to 4 degrees Celsius. It's an ideal way to rapidly reduce the milk temperature immediately after milking. Cooling efficiency can be enhanced when used in conjunction with a milk flow rate controller.
Voice Messaging System will voice the selected message for a specific cow as programmed in the herd management software. The system is especially convenient for shift work in the milking parlor, as it enables the exchange of important information. Users can create custom messages related to specific cows. The system will inform the milking parlor operator about various events related to the milking process (e.g., a decrease in a cow's milk yield, etc.).
Energy-Saving Pump System
A modern system that optimizes pump operation and reduces energy consumption in milking parlors.

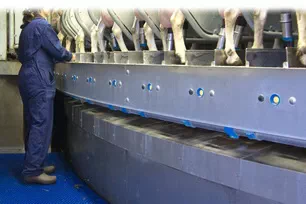

Adjustable Lifting Floor
Enhances operator comfort and efficiency in the milking parlor by reducing fatigue.
Farm Messenger Mobile App
A convenient app for real-time milking parlor management and monitoring via mobile devices.
Automatic Teat Spraying System
A system that ensures udder hygiene and prevents infections by automatically spraying teats with disinfectant after milking.
Energy-Saving Pump System - This innovative component of the milking parlor allows for optimizing pump speed based on system requirements, leading to up to an 80% reduction in energy consumption and lower electricity costs.
Adjustable Lifting Floor - This feature of the milking parlor provides the operator with the ability to adjust the height of the working space, improving access to animals and enhancing workplace ergonomics, reducing fatigue, and increasing productivity.
Farm Messenger Mobile App - With this mobile app, operators can monitor and manage the milking process in real-time, receive notifications about milking status, and control sorting processes, all through their mobile devices.
Automatic Teat Spraying System - A system that automatically sprays the teats of animals with a disinfectant solution after each milking, helping prevent the spread of infections and maintaining udder hygiene.
