Rubber Mats for Cows in Stalls and Boxes - Improving Comfort and Hygiene
Comfortable rubber mats for cow stalls

Rubber Mats for Cows for Stalls or Boxes. Farm concrete floors often do not provide sufficient comfort for cattle. Kraiburg offers a solution - multi-layer rubber mats that reduce stress and enhance animal productivity by simulating a natural pasture surface.

Innovative mats made of durable rubber withstand the extreme demands of agricultural production. Their unique multi-layer design provides comfort for animals, reduces the risk of injuries and diseases such as mastitis, and surpasses standard bedding in hygiene characteristics.

Advantages of Rubber Mats for Stalls

Reduced risk of mastitis, hoof diseases, and cuts.

Prevention of joint diseases in cows.

Up to 80% bedding savings due to waterproof properties.

Insulation properties for added comfort.

Increased level and quality of milk productivity.

Excellent price-quality ratio of mats.

Availability in convenient roll form.

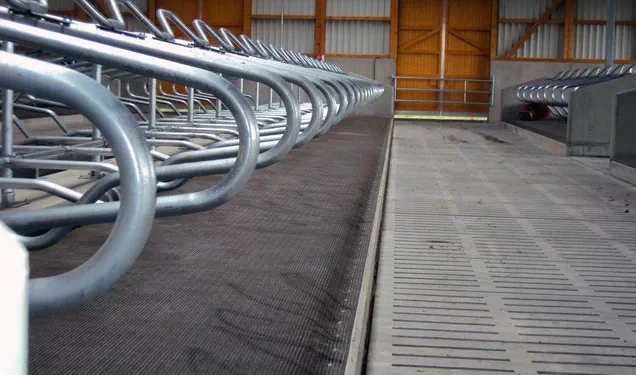

Rubber mats for cows improve comfort and productivity

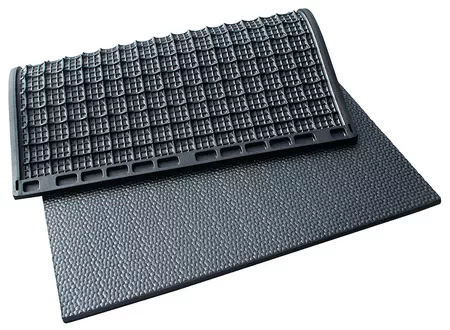

Rubber Mat KIM and KIM Puzzle

Offering an "air cushion" for optimal animal comfort, KIM and KIM Puzzle rubber mats provide ideal conditions for resting and reduce wear and tear. The slope for moisture drainage and a special chamfer promote quick drying and are gentle on cow joints.

KIM Sizes: Thickness: 30 mm, Available lengths: 170 cm and 183 cm, Widths: from 110 cm to 130 cm.

KIM Puzzle Sizes: Thickness: 30 mm, Available lengths: 170 cm and 183 cm, Widths: from 110 cm to 125 cm.

Innovative rubber mats KIM and KIM Puzzle for stalls

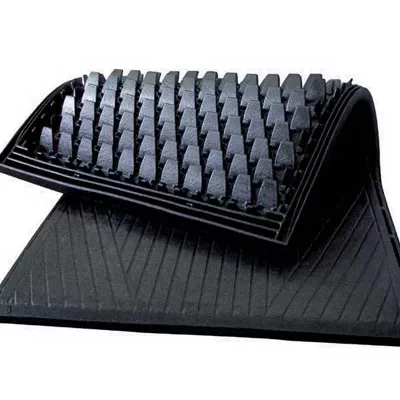

Kraiburg Wingflex Rubber Mat for Cows

The optimal choice for resting boxes, the Kraiburg Wingflex mat enhances cow comfort with its innovative soft and elastic structure.

The unique "wing" profile ensures excellent adaptation to the animal's body shape, providing durability and stability of form.

The built-in slope and chamfer on the rear edge accelerate drying and protect cow joints, preventing the formation of horn lesions.

Sizes: Thickness: 60 mm, Length: 183 cm, Adjustable width from 101.6 cm to 130 cm, adaptable to box sizes.

Innovative rubber mat Kraiburg Wingflex for cow comfort

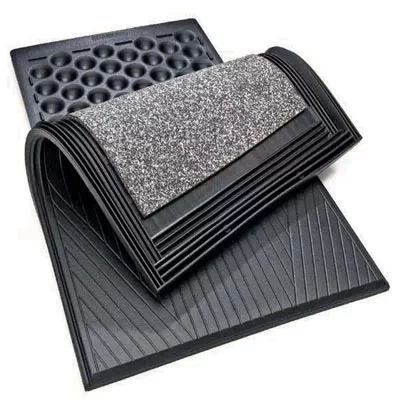

Kraiburg Kew Plus Rubber Mat for Cows

The three-layer structure provides perfect softness under any weight, maintaining shape and comfort for an extended period.

A special covering in the resting area minimizes the risk of slipping and promotes proper cow positioning in the box.

The Elastik surface and integrated slope for quick drying enhance hygiene and ease of use.

The chamfer on the rear edge protects joints, preventing horn lesion formation.

Sizes: Thickness: 60 mm, Length: 183 cm, Width: from 101.6 cm to 130 cm, with adjustment for box sizes.

Three-layered rubber mat Kraiburg Kew Plus for cows

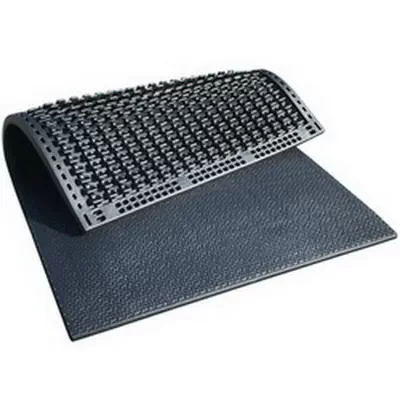

Kraiburg WELA and WELA Puzzle Rubber Mats for Cows

Perfect for installation in resting boxes, Kraiburg WELA and WELA Puzzle rubber mats offer maximum comfort and durability, adapting to the cow's body shape.

The structured surface ensures stable positioning and reduces slippage, while the integrated slope promotes quick drying and hygiene.

Special edge profiles minimize dirt buildup and facilitate cleaning, improving overall box sanitation.

WELA Sizes: Thickness: 50 mm, Length: 183 cm, Width from 110 cm to 125 cm.

WELA Puzzle Sizes: Thickness: 50 mm, Length: 183 cm, Width from 110 cm to 120 cm.

Ergonomic rubber mats Kraiburg WELA for cow comfort

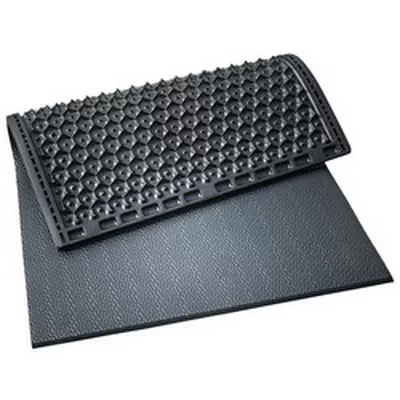

KKM and KKM Puzzle Rubber Mats for Cows

These 30-millimeter mats for stalls provide high durability and comfort due to their cellular profile and zones of different softness.

The Elastik surface increases comfort for cows, while the integrated slope promotes quick drying, maintaining optimal sanitary conditions.

KKM Sizes: Thickness: 30 mm, Length: 170 / 183 cm, Width from 110 cm to 130 cm.

KKM Puzzle Sizes: Thickness: 30 mm, Length: 170 / 183 cm, Width from 110 cm to 125 cm.

Durable rubber mats KKM and KKM Puzzle for cow comfort

TARSA Rubber Mat for Cows

The TARSA mat provides cows with a comfortable lying area with a soft and flexible tarsal zone designed to protect the tarsal joint. Its front part with three layers creates an optimal resting position for cows.

Features of the tarsal zone:

  • Reduction of pressure on tarsal joints.
  • Improved air circulation to maintain skin dryness.
  • Effective bedding retention.

The integrated slope enhances mat surface drying.

TARSA Sizes: Thickness: 60 mm, Length: 183 cm, Width from 120 cm to 130 cm.

Innovative TARSA rubber mat for tarsal joint protection in cows

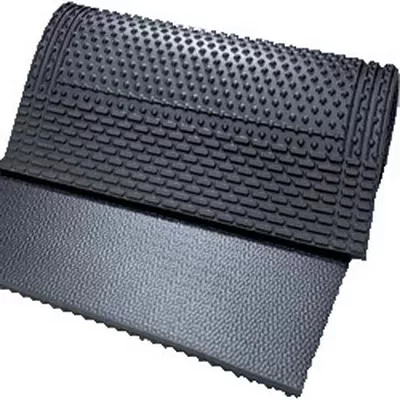

Kraiburg Lenta Rubber Mat for Stalls

Ideal for tie stalls and feeding alley steps, Kraiburg Lenta combines softness and durability with its unique double-grooved profile.

High strength and wear resistance ensure the mats maintain their original shape. The integrated slope promotes rapid drying, and special inserts protect against dirt penetration.

Kraiburg Lenta Sizes: Thickness: 30 mm, Available lengths: from 110 to 220 cm, Width: from 150 to 130 cm.

Durable rubber mat Kraiburg Lenta for optimal cow comfort

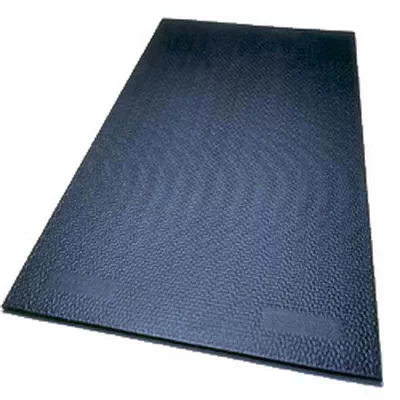

Kraiburg Ken and Ken Puzzle Rubber Mats for Cows

Perfect for tie stalls, Kraiburg Ken mats provide comfort and softness with their unique grooved profile.

High wear resistance and shape retention ensure long-lasting use, and flexible sizes allow adaptation to any stall dimensions.

KEN Sizes (straight edge): Thickness: 20 mm, Length: from 90 to 130 cm, Width: from 130 to 350 cm.

KEN Puzzle Sizes: Thickness: 20 mm, Length: from 105 to 125 cm, Width: from 140 to 200 cm.

Soft and wear-resistant rubber mats Kraiburg Ken for cow comfort

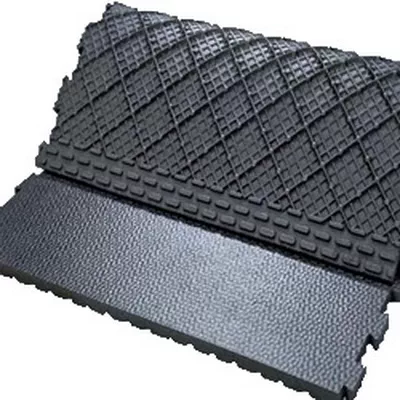

Kraiburg Calma Rubber Mat for Calves

Specially designed for calf pens, the Kraiburg Calma mat provides optimal comfort for young cattle with its unique "air cushion" on the underside.

The product is characterized by long-lasting shape and softness, while special seals minimize dirt penetration beneath the covering.

Kraiburg Calma Sizes: Thickness: 30 mm, Length: 115 cm, Width: from 140 to 180 cm.

Innovative rubber mat Kraiburg Calma for calf comfort

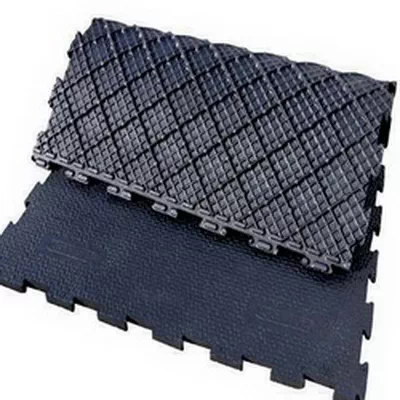

Kraiburg Siesta Puzzle Rubber Mat for Cows

Description: The Kraiburg Siesta Puzzle rubber mat, designed for maternity pens, provides the highest level of comfort with an "air cushion" on the underside. The product is known for its durability, shape retention, and ease of maintenance. The unique four-sided puzzle connection system simplifies installation and can withstand transport loads.

Sizes: Thickness: 30 mm, Length: 115 cm, Width: 170 cm.

Rubber mat Kraiburg Siesta Puzzle for maternity pens of cows

Kraiburg Sentor and Sentor Puzzle Rubber Mats for Cows

Description: Sentor mats from Kraiburg, with their multi-level studs on the reverse side, provide the perfect balance between softness and resilience. They are suitable for cows with basic comfort needs and are characterized by durability and ease of maintenance. The integrated slope promotes rapid moisture drainage, and edge seals prevent dirt from getting under the mat.

Sentor Sizes: Thickness: 30 mm, Length: 170/183 cm, Width: from 110 to 125 cm.

Sentor Puzzle Sizes: Thickness: 30 mm, Length: 170/183 cm, Width: from 110 to 120 cm.

Ergonomic rubber mats Kraiburg Sentor for improved cow comfort

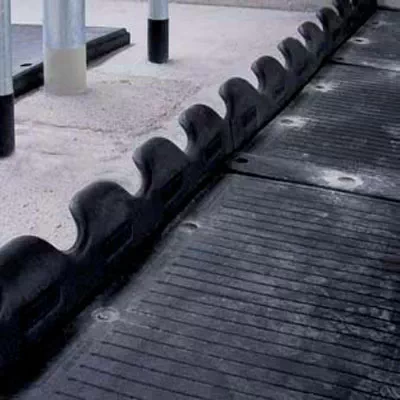

Elastic Rubber Chest Support ErgoBOARD

Description: ErgoBOARD is an elastic chest support that increases cow comfort during rest and facilitates their correct positioning in the stall. The product is gentle on cow wrists when getting up and is easily installed in any stall. Compatibility with various stall coverings and ease of retrofitting make it a versatile solution for modern dairy farms.

Sizes: Thickness: 18.5 cm, Length: 120 cm, Width/Depth: 9 cm.

Comfortable and durable elastic chest support ErgoBOARD for cows

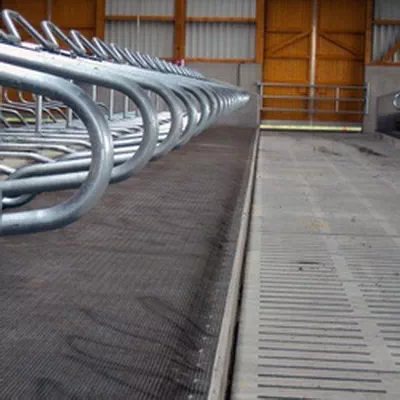

Rubber Mattress for Stalls with Polyurethane or Latex Underlayment

This two-layer cattle stall mattress is offered with a minimum thickness of 35 mm, including a 4 mm rubber top layer and a 30-32 mm polyurethane or latex bottom layer, with the option to order different thicknesses. The non-slip top layer and fastening components ensure reliability and ease of use. Stall sizes and fasteners can be customized to meet individual customer needs.

Standard stall sizes: 1.2x1.8 m, with customization available upon request.

Customizable rubber mattress for stalls with choice of underlayment
