“Cow Rotary” Milking Parlor

Automatic Identification System reads information from an electronic ear chip as a cow enters the milking parlor. The chip is attached to each cow’s ear, and as the animal passes through the identification antenna located at the entrance to the milking parlor, or through the selection block if available, it sends a signal to the reading device, which in turn sends a message to the computer, accurately identifying the cow.

Milk Manager Software provides easy access to complete information on milk yields, milking time, veterinary data, cow sorting, and live weight, and controls and manages all automatic systems of the parlor. All data is entered into clear tables and graphs, and the livestock manager has the opportunity to add to the program the results of monitoring productive indicators. During the entire milking process, the management program controls and tracks the condition of each cow during milking. The program can fully control and automate cow separation processes. Animals are sorted using robotic sorting gates, and the sorting schedule can be adjusted depending on user requirements, for example, constant separation of streams or temporary separation of certain cows in a specific direction. The cow activity detection system, designed to detect 'heat' in cows, also interacts with the program. When a cow is identified as being in 'heat,' the sorting gates can automatically sort such a cow during the milking set by the user.

Milking Station Control Panel displays a number of important indicators such as milk yield, milking time, the number of somatic cells in each cow's milk, and much more. With one touch, you control the feeding of animals at each milking station, receive a message about a cow in heat and manage the operation of the sorting gates, separating the animal for inspection or insemination. In addition, the Swiftflo Commander display informs of fresh cows in the milking parlor, initiating milking into the diversion milk line.

Milking Machine allows for visual control of the milk flow through the transparent cover of the collector. According to scientific research conducted over the full period of a cow's lactation, the Dairymaster milking machine allows for a 5% higher milk yield compared to other tested milking machines. The advantages of the milking machine are determined by its components, including: a specially designed collector, stainless steel cup liners, and super-elastic conical teat rubber. The teat rubber is exceptionally high-performing, has the lowest level of slippage among existing teat rubber brands. The special conical shape and elasticity of the teat rubber, made from a special material, ensure a milking regime that does not cause the cup to climb the base of the teat during milking, and the teat canal is not pinched. The milking machine provides a stable vacuum during the milking phase (42-44 kPa in the teat chamber) and reduces it during the rest phase (to 18-20 kPa depending on the milk flow). This contributes to faster milking and improved udder health.

Milk Receivers are manufactured from stainless steel with side dome-shaped viewing windows made of transparent food-grade plastic to visualize the milk entering the receiver. Milk receivers can vary in size depending on the milking parlor.

The Reactive Washing System is an effective system for washing milking installations of any type and size. The system is managed by a washing automat and comes with a capacity air injector. It fills the capacity with water and then propels it into the milk line at a speed of 12-14 m/sec. This creates turbulent water flow in the milk line, allowing for effective washing of both the milk line and receiver while minimizing the use of washing solution.

The Washing Automat ensures quality washing of the milking parlor on a regular basis. Fully integrated, the washing automat controls the entire washing cycle of the milking parlor. It maintains communication with the milking parlor equipment, including milk meters and the automatic detachment system, to ensure the best washing sequence. The washing automat allows for the selection of various washing cycles at the press of a button. The sequence of washing cycles is fully programmable and can be easily adjusted to user requirements. A pre-rinsing before the start of milking can be programmed for automatic initiation. A safety valve prevents the system from starting the wash if the milking parlor is incorrectly connected to the washing system, avoiding accidental introduction of cleaning solution into the milk cooling tank. The presence of a built-in warning indicator timely informs the user of incorrect system operation, for example, low levels of cleaning agents, etc. The system is equipped with a rechargeable battery to save settings in the event of a sudden power outage.

Centrifugal Milk Pumps are manufactured using the latest technologies, materials, and designs. The milk pump is equipped with a multi-blade impeller, offering several advantages, specifically high-efficiency gentle pumping at various speeds, thanks to the unique blade design.

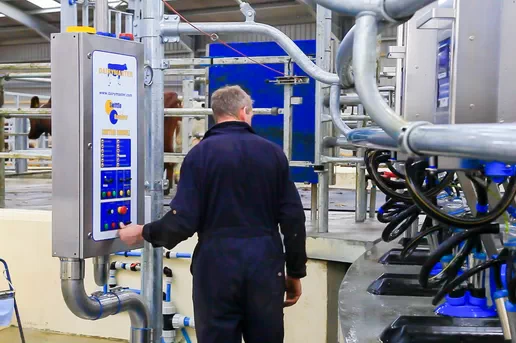

The central control panel allows the operator to control all functions of the carousel, feeding system, and automatic aligner (if necessary). All control elements are housed in stainless steel casing with the ability to manually control automated systems such as feeding system, platform forward and backward movement, and rotation speed.

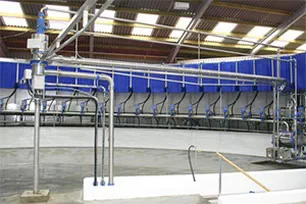

The central distribution collector enables control of vacuum, milk transport, electrical power, communication, water supply, compressed air, and connection to milk outlets through the central control point.

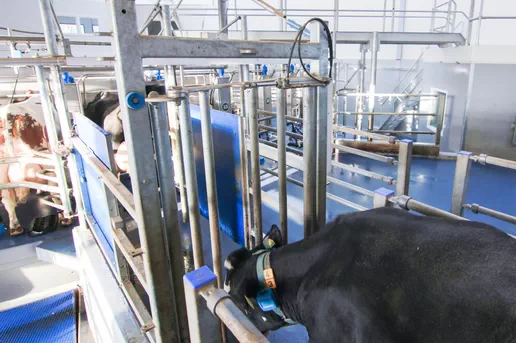

Automatic entrance gates ensure smooth and uniform loading of the "Carousel," allowing cows to enter the platform freely, admitting only one animal at a time to avoid double-cow registrations.

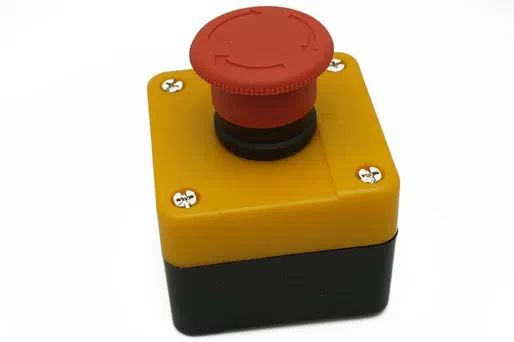

The platform emergency stop system is designed for rapid platform shutdown. When activated, the platform stops immediately. Such stops can be made when a cow cannot enter or exit the platform. When the obstacle is removed, the platform automatically resumes its movement.

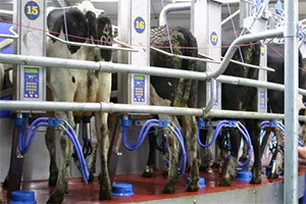

The bracket for positioning the milking apparatus holds the milking apparatus in the optimal position behind the cow, making it easier for the operator to put it on the udder and ensuring easy entry and exit of cows from the platform. It protects hoses from twisting.

The Automatic Addressable Feeding System (a system for stimulating cow productivity and completeness of milking in the milking parlor) allows for an additional yield of up to 8% milk and saves 1 kg of feed per animal per day, eliminating the need for an expensive automatic aligner in the pre-milking area and avoiding frequent sorting of animals by productive-physiological groups. In “Cow Rotary” type milking parlors, up to four different types of feed can be dispensed depending on the physiological stage of the animal.

Milk Diversion Line (automatic milk sorting system) allows for sorting milk by types during the milking process, enabling the sale of milk by different types at different prices. It also eliminates the need for investment in the construction of a milking parlor separation room and the purchase of milking and refrigeration equipment for it, as all animals are milked in the main milking parlor. It allows avoiding the creation of a special group of mastitis animals. In “Cow Rotary” type milking parlors, a secondary milk line can also be used (simultaneously milk can be separated into 3 types) to separate milk with, for example, increased protein or fat content.

The Milking Machine Disinfection System automatically rinses each milking machine with a disinfecting solution after each cow, eliminating cross-contamination of animals in the milking parlor using the same milking machine. Reducing the somatic cell count increases the level of payment for milk quality and improves herd health.

The Selection Block can separate cows in two, three, and more directions. Directions for individual cows can be set from the milking pit using a milk meter control panel, or in automatic mode based on previously entered information into the herd management system. An additional function of such a system is automatic weighing.

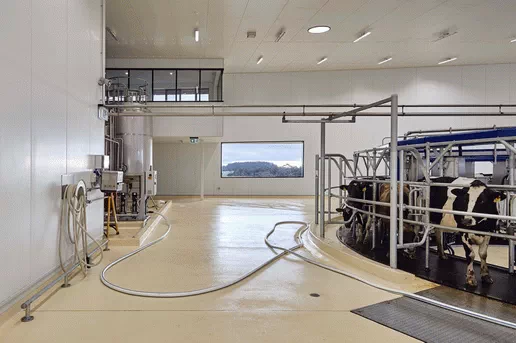

Rotating stainless steel bracket for external parlor cleaning, equipped with a hose and nozzle used for cleaning the area around the external part of the platform. The device facilitates parlor cleaning as the operator does not have to carry long hoses.

Lift Floor provides comfortable working conditions in your milking parlor, increasing the operator's efficiency and productivity, reducing fatigue. It has pre-set levels stored in the device's memory. The flooring used in the system is designed for long service life, easy cleaning, slip resistance, and water drainage.

Farm Messenger is a convenient tool for managing the milking parlor using a mobile phone. It displays the number of cows milked, total yield, start time, and milking duration. Users can configure messages for the milking parlor's sound system, manage cow sorting through selection gates, input veterinary information, and perform other tasks.

Automatic teat spraying for carousel platforms can be activated both before and after milking, five seconds after removing the milking machine. Chlorhexidine is used for spraying, which is a highly effective method that eliminates the need for an employee at the cup removal point.
